دوچرخه اسکات Gambler 930 2021 برای یک چیز ساخته شده، با حداکثر سرعت از مسیرهای کوهستانی پایین بیایید. بدنه این دانهیل از آلومینیوم سبک ساخته شده و بسیار سریع میباشد.
Submit your review | |
SCOTT GAMBLER 930 (2021)
Average rating: 0 reviews
SCOTT GAMBLER 930 (2021)
ناموجود
مشخصات فنی دوچرخه
| سایز تنه | S, M, L |
| تنه | Gambler Alloy 6061 / Hydroformed custom butted / BB107 VLK Virtual 4 Link kinematic 27.5 |
| کمک / دوشاخ | Rockshox Boxxer Select / DebonAir Charger RC / Lo Comp / Rebound / 56mm Offset 20mm Boost through axle / Alloy steerer / 200mm travel |
| کمک وسط | X-Fusion Vector R Coil Rebound Custom tuned / 225x75mm Spring rates S: 400 / M: 450 / L&XL: 500 |
| شانژمان جلو | N/A |
| شانژمان عقب | SRAM X5 Medium cage / 8 Speed |
| دسته دنده | SRAM X4 Trigger Shifter / 8 Speed |
| ترمز | Shimano BR-MT520 4 piston Disc, Shimano SM-RT66L / 6 Bolt / 203mm |
| طبق قامه | Race Face Chester 34T Alloy chainring / 165mm |
| توپ تنه | Race Face BB107 Shell 107x41mm |
| زنجیر | KMC Z-8.3 |
| توپی | Front: Formula DHL-92 Boost / 110x20mm thru axle, Rear: Formula DHL-157 157x12mm thru axle / sealed bearings |
| طوقه | Syncros MD30 Disc / 29 |
| سیم پره | DT Swiss Industry / 2.0 black |
| خودرو | SRAM PG-830 / 11-28 T |
| تایر | Maxxis Assegai 29x2.5 |
| کرپی فرمان | Syncros DH1.5 31.8mm / Direct Mount 50mm |
| فرمان | Syncros Hixon 1.5 DH 31.8mm / 15mm Rise/ 8° / 800mm Syncros Pro DH dual lock-on grips |
| کاسه دوشاخ | Syncros DH Semi integrated ID 49.6mm / OD 56mm |
| لوله زین | Syncros DH2.0 / 31.6mm / Alloy6061 |
| صندل | Syncros Kaslo 2.0 Crmo Rails |
| پدال | Wellgo B155U SCT / flat / w/replaceable pins |

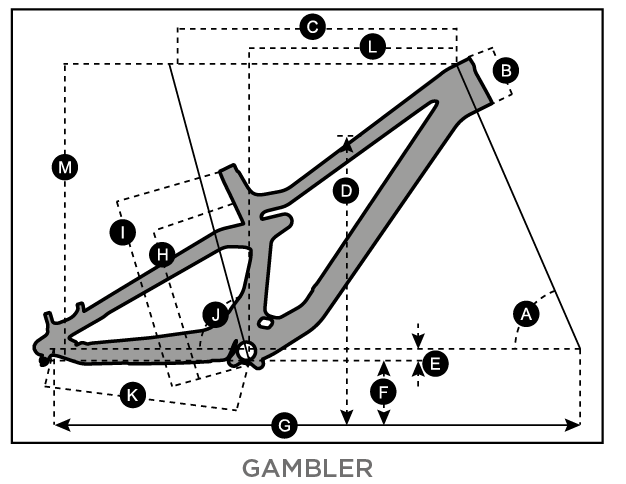

Geometry
| LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle | 62.9 ° | 63.2 ° | 62.9 ° | 63.2 ° | 62.9 ° | 63.2 ° | 62.9 ° | 63.2 ° | ||||||||||
| B | head tube length | 110.0 mm | 110.0 mm | 110.0 mm | 110.0 mm | 110.0 mm | 110.0 mm | 110.0 mm | 110.0 mm | ||||||||||
| C | top tube horizontal | 537.4 mm | 535.7 mm | 567.5 mm | 565.7 mm | 621.0 mm | 618.9 mm | 651.1 mm | 648.9 mm | ||||||||||
| D | standover height | 719.3 mm | 712.3 mm | 711.6 mm | 705.0 mm | 712.1 mm | 705.8 mm | 709.6 mm | 703.6 mm | ||||||||||
| E | BB offset | -24.2 mm | -8.5 mm | -24.2 mm | -8.5 mm | -24.2 mm | -8.5 mm | -24.2 mm | -8.5 mm | ||||||||||
| F | BB height | 346.4 mm | 342.6 mm | 346.0 mm | 342.6 mm | 345.4 mm | 342.6 mm | 346.2 mm | 342.6 mm | ||||||||||
| G | wheel base | 1,207.6 mm | 1,212.8 mm | 1,237.6 mm | 1,242.8 mm | 1,270.0 mm | 1,272.8 mm | 1,297.6 mm | 1,302.8 mm | ||||||||||
| H | BB center to toptube center | ||||||||||||||||||
| I | BB center to top of seattube | 405.0 mm | 405.0 mm | 405.0 mm | 405.0 mm | 405.0 mm | 405.0 mm | 405.0 mm | 405.0 mm | ||||||||||
| J | seat angle | 66.8 ° | 67.2 ° | 66.8 ° | 67.2 ° | 63.8 ° | 64.2 ° | 63.8 ° | 64.2 ° | ||||||||||
| K | chainstay | 438.7 mm | 435.0 mm | 438.7 mm | 435.0 mm | 438.7 mm | 435.0 mm | 438.7 mm | 435.0 mm | ||||||||||
| L | reach | 400.2 mm | 405.0 mm | 430.3 mm | 435.0 mm | 460.4 mm | 465.0 mm | 490.5 mm | 495.0 mm | ||||||||||
| M | stack | 636.2 mm | 631.3 mm | 636.2 mm | 631.3 mm | 633.5 mm | 631.3 mm | 636.2 mm | 631.3 mm | ||||||||||
| N | stem length | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm | ||||||||||
| trail | 130.5 mm | 119.0 mm | 130.5 mm | 119.0 mm | 130.5 mm | 119.0 mm | 130.5 mm | 119.0 mm | |||||||||||
