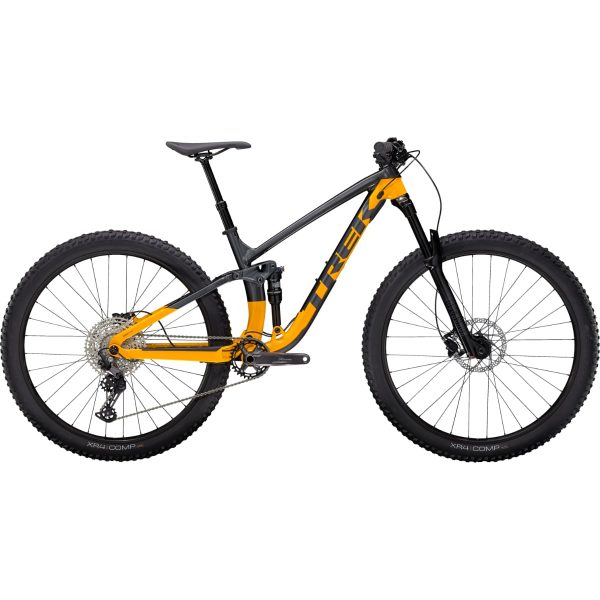

Trek Fuel EX 5 Gen 5 (2023)

218,800,000 تومان

Trek

دوچرخه ترک فیول اکس ۵ نسل ۵ (۲۰۲۳) – Trek Fuel EX 5 Gen 5 (2023)

Fuel EX 5 یک دوچرخه دوکمک تریل است که هر نوع مسیری را میتوانید رکاب بزنید. Fuel EX 5 با کمک 140 میلیمتری جلو و 130 میلی‌متر عقب، ست دنده Shimano 1×12، لوله زین هیدرولیک برای پایین آمدن در سرازیری ها و ترمزهای دیسکی هیدرولیک، به عنوان یک دوچرخه کوهستانی با ارزش و با کارایی بالا شناخته می‌شود.

Trek Fuel EX 5 Gen 5 (2023)

The Fuel EX 5 is a full-suspension trail bike that’s ready to handle it all. With trail-taming 140 mm front and 130 mm rear suspension, a Shimano 1×12 drivetrain, a dropper post for getting low on descents and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.

Highlights of the Trek Fuel EX 5 Gen 5 – 2023:

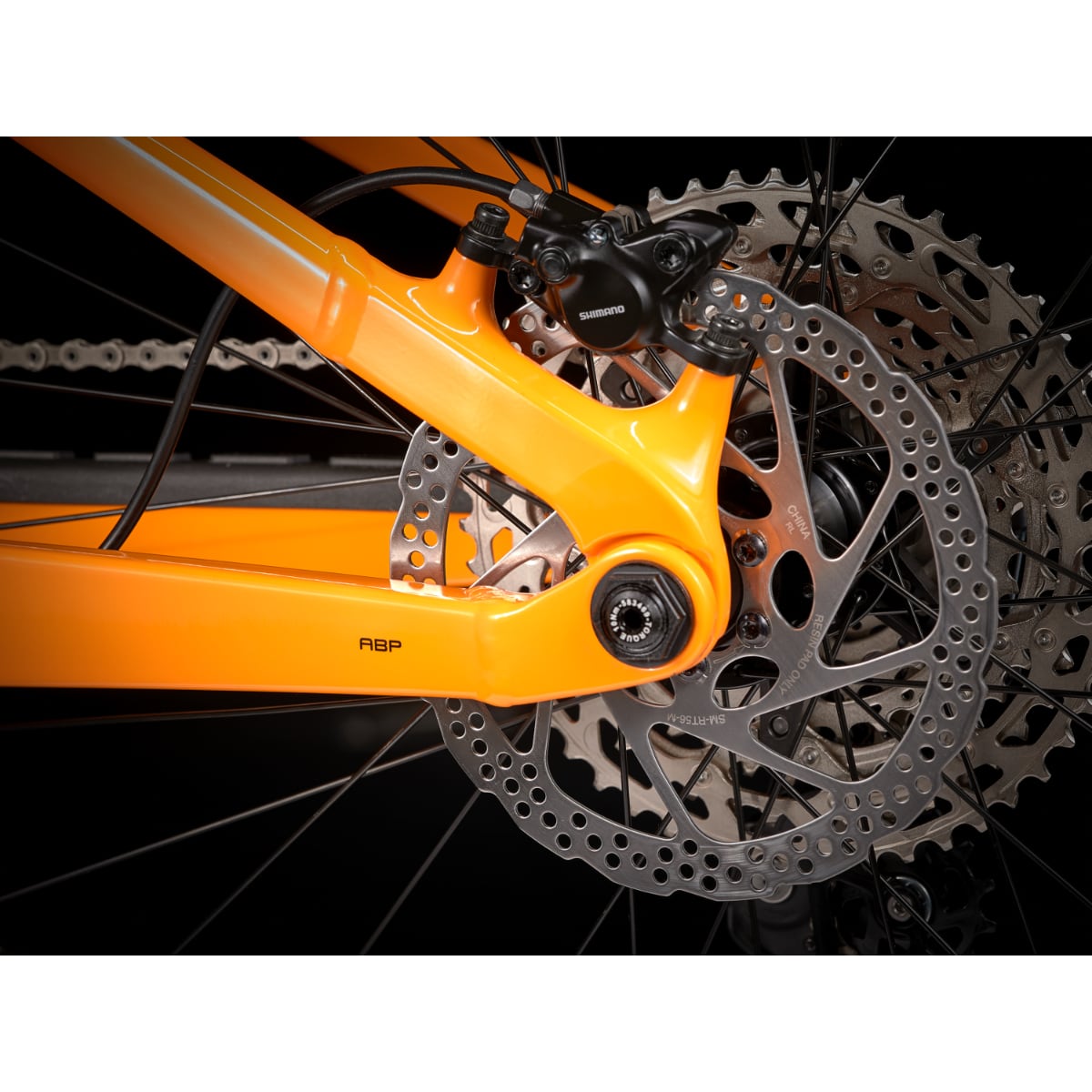

  • Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
  • Full control with the lightweight RockShox Recon Silver suspension fork with Debon Air spring, Motion Control damper, and lockout.
  • The new Shimano Deore 1×12 drivetrain offers an extra-light climbing gear to save important energy on long stages.
  • The frame is made of Alpha Platinum Aluminium, which is continuously cold extruded and butted at multiple points, and hydroformed into sophisticated tube shapes for maximum strength and minimum weight.

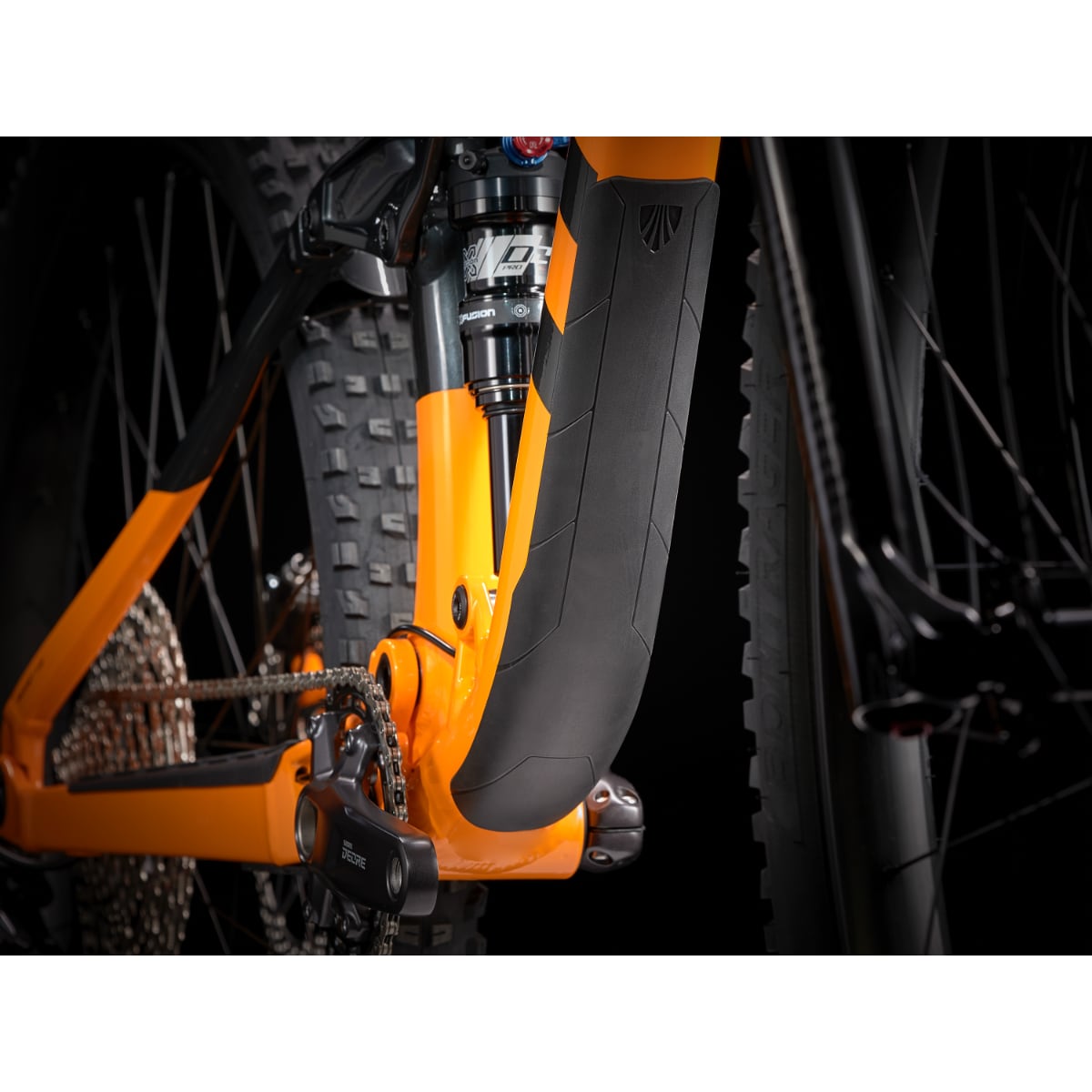

  • The Straight Shot down tube gives the frame extra stiffness without adding weight.
  • Knock Block protects your frame when things don’t go smoothly. It prevents your handlebars from being turned completely around in a fall to avoid too much pull on your lines and prevent contact of the handlebars with the top tube.
  • Mino Link adjustable geometry. Fine tune head tube angle by 1/2° and BB height by up to 10mm with the simple turn of a nut. Just flip the link to choose between slack or slacker geometry, without negatively affecting suspension performance. A Trek exclusive.
Trek Fuel EX 5 Gen 5 (2023)
Average rating:
 0 reviews
مشخصات فنی دوچرخه
رنگ Lithium Grey/Marigold
سایز تنه S, M , ML , L , XL , XXL
تنه Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
کمک / دوشاخ RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 140 mm travel

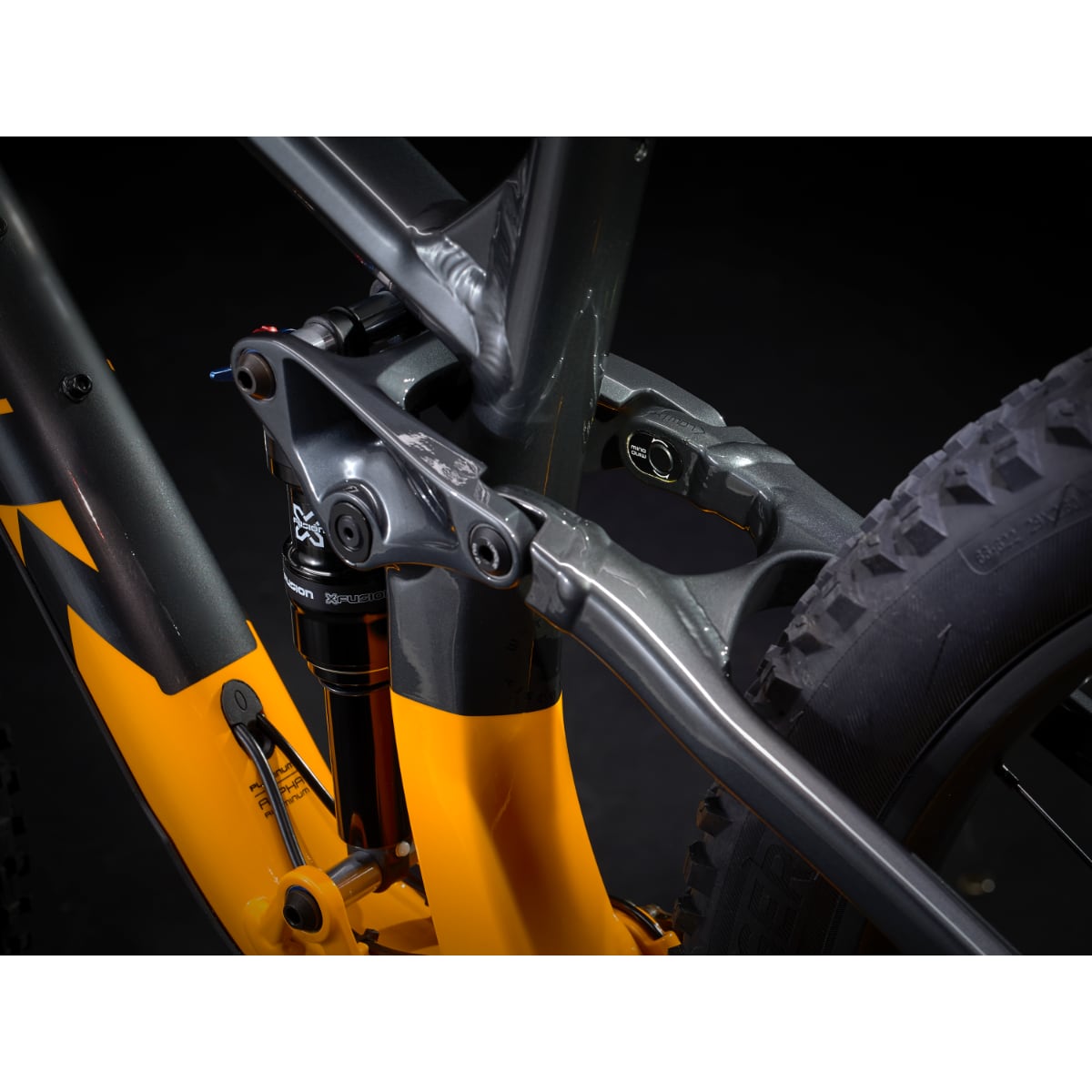

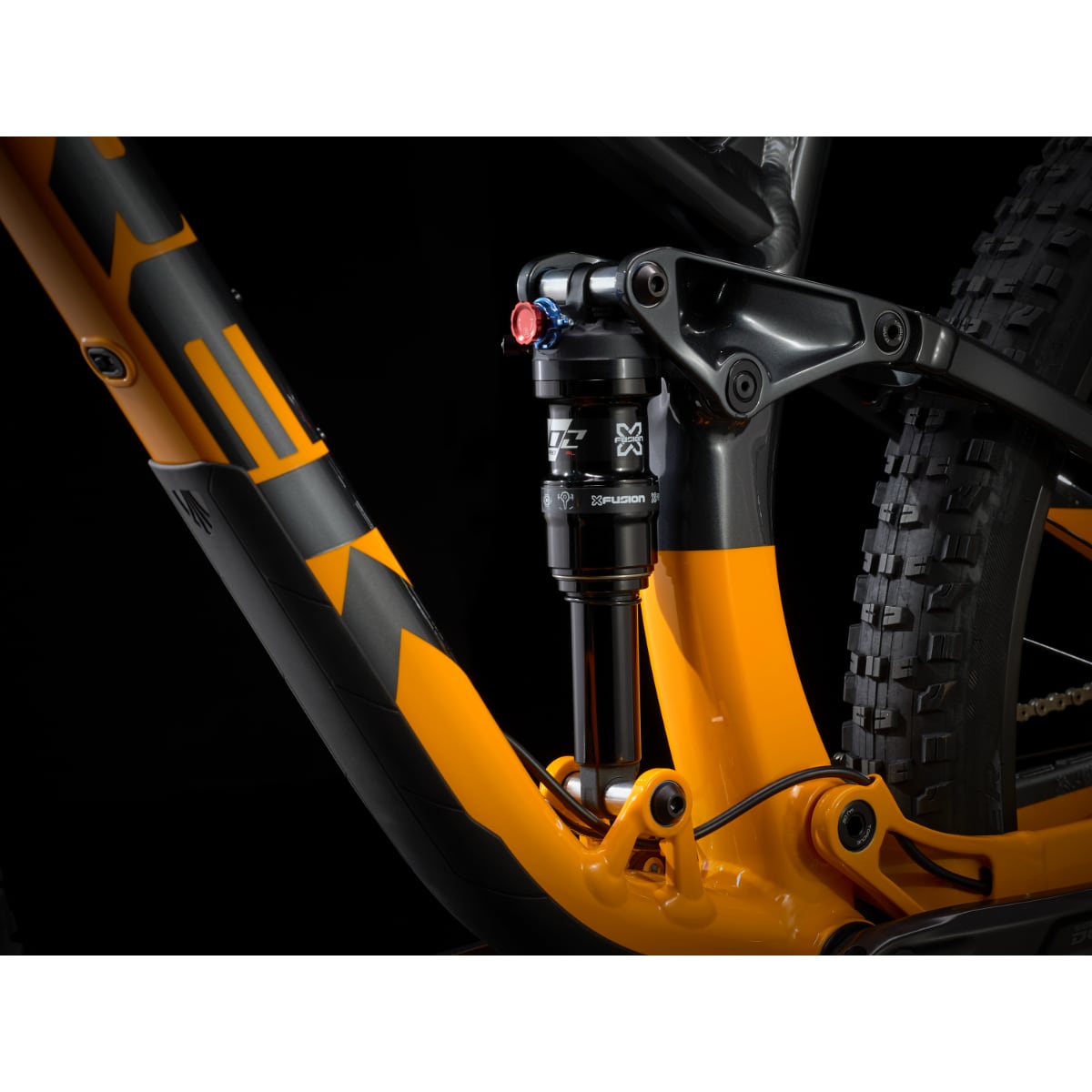

کمک وسط X-Fusion Pro 2, 2-position damper, 210 mm x 55 mm

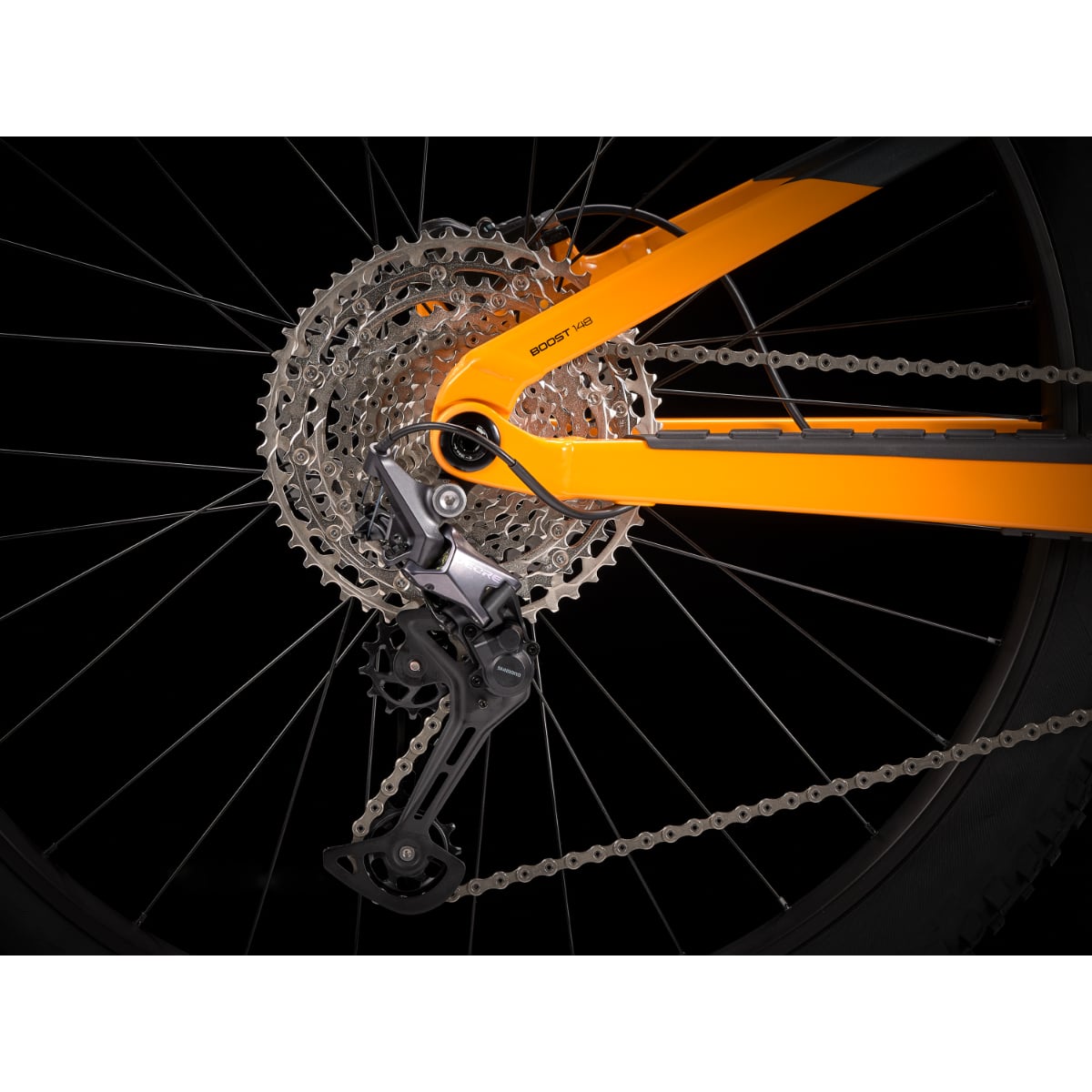

شانژمان عقب Shimano Deore M6100, long cage
دسته دنده Shimano Deore M6100, 12-speed
ترمز Shimano hydraulic disc, MT201 lever, MT200 calliper, Shimano RT56, 6-bolt, 180 mm

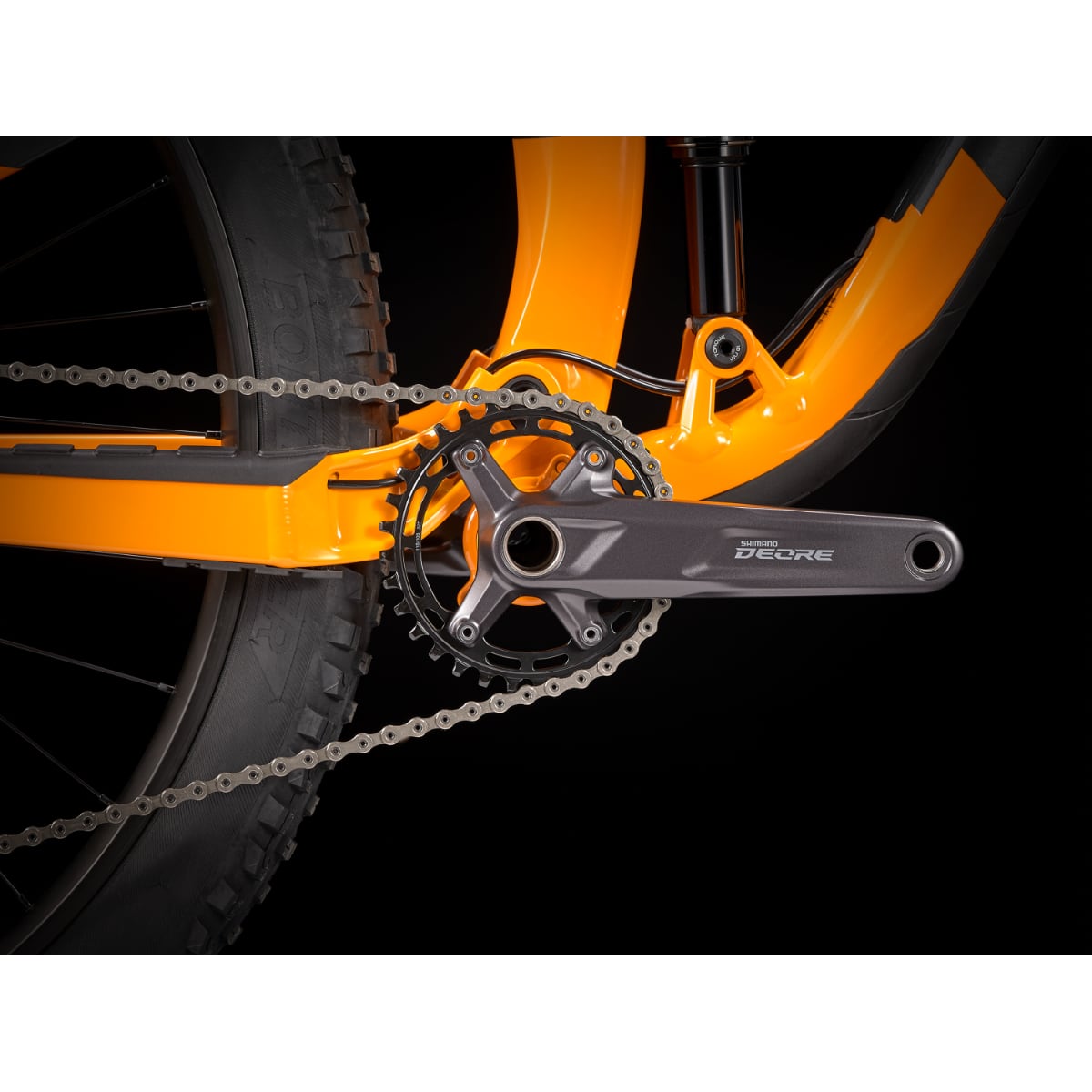

طبق قامه Praxis Cadet, 30T
توپ تنه Shimano MT500, 92 mm, PressFit
زنجیر Shimano Deore M6100, 12-speed
توپی Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
طوقه Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
سیم پره 14 g stainless steel, black
خودرو Shimano Deore M6100, 10-51, 12-speed
تایر Maxxis Rekon EXO, wire bead, 60 tpi, 29x2.60''
کرپی فرمان Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
فرمان Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
کاسه دوشاخ Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom

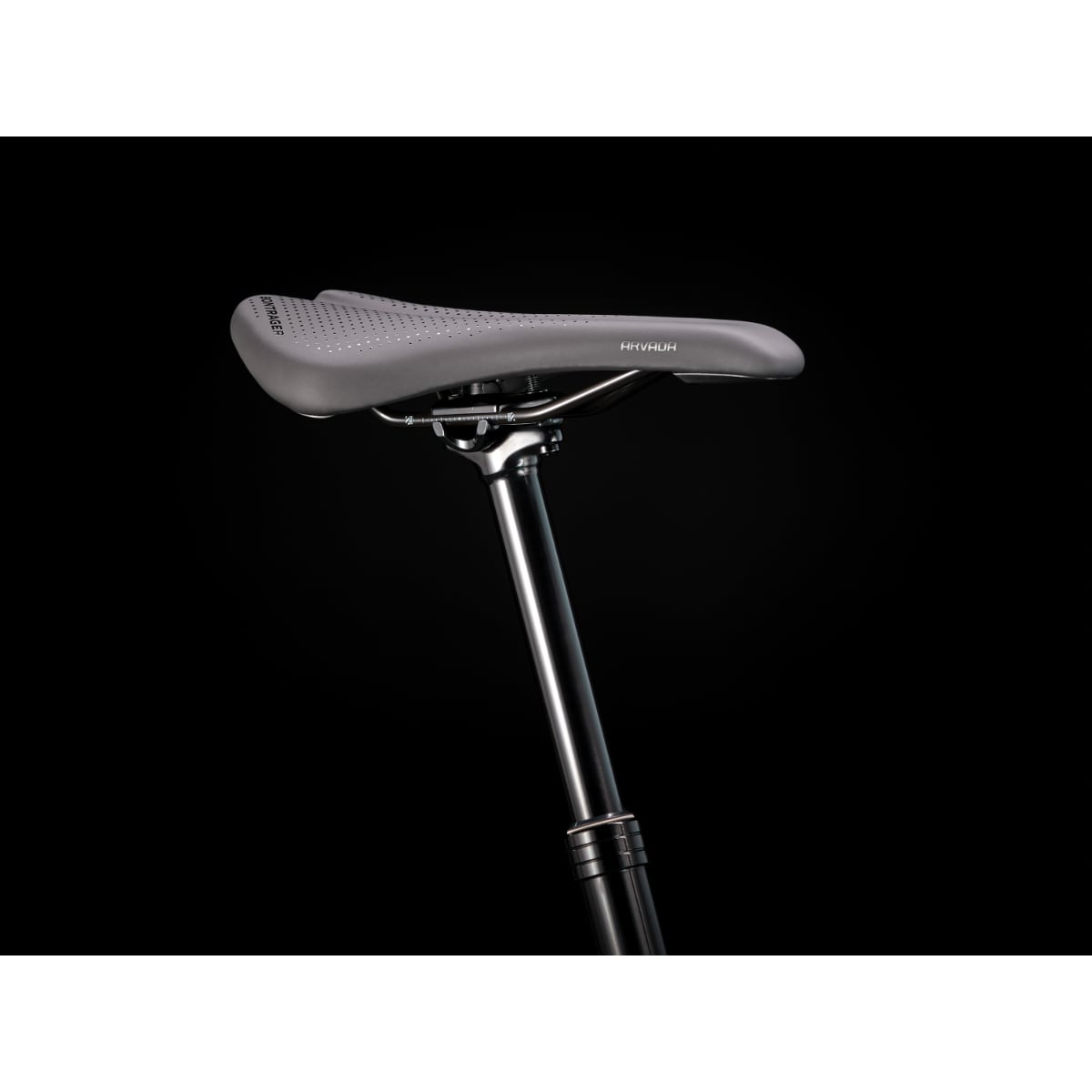

لوله زین TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
صندل Bontrager Arvada, steel rails, 138 mm width

Geometry

Frame size number Frame size letter Geometry position Wheel size A — Seat tube B — Seat tube angle Effective seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
14.0″ XS Low 27.5″ 35.6 69.0° 75.0° 9 66.0° 54.6 33.5 2.1 43.7 4.3 11.1 112 69.5 39.5 56.3
14.0″ XS High 27.5″ 35.5 69.5° 75.5° 9 66.5° 54.5 34.1 1.4 43.6 4.3 10.6 111.9 70 40 55.9
15.5″ S Low 27.5″ 39.5 69.0° 75.0° 10 66.0° 56.8 33.5 2.1 43.7 4.3 11.1 114.4 69.4 41.5 57.2
15.5″ S High 27.5″ 39.5 69.5° 75.5° 10 66.5° 56.7 34.1 1.4 43.6 4.3 10.6 114.3 69.8 42 56.8
15.5″ S Low 29″ 39.5 67.5° 75.0° 10 66.0° 57.8 34 3.4 43.7 4.3 11.9 115.4 71.1 41.5 60.9
15.5″ S High 29″ 39.5 68.0° 75.5° 10 66.5° 57.7 34.6 2.8 43.6 4.3 11.5 115.3 71.5 42 60.5
17.5″ M Low 29″ 42 67.5° 75.0° 10 66.0° 60.3 34 3.4 43.7 4.3 11.9 117.9 74.2 44 60.9
17.5″ M High 29″ 42 68.0° 75.5° 10 66.5° 60.2 34.6 2.8 43.6 4.3 11.6 117.8 74.8 44.5 60.5
