اسکات Metrix 20 2021 با تنه آلومینیوم سبک و دوشاخ کربن با طراحی اسپرت گزینه ای ایده آل برای تردد در شهر و جاده میباشد.
Submit your review | |

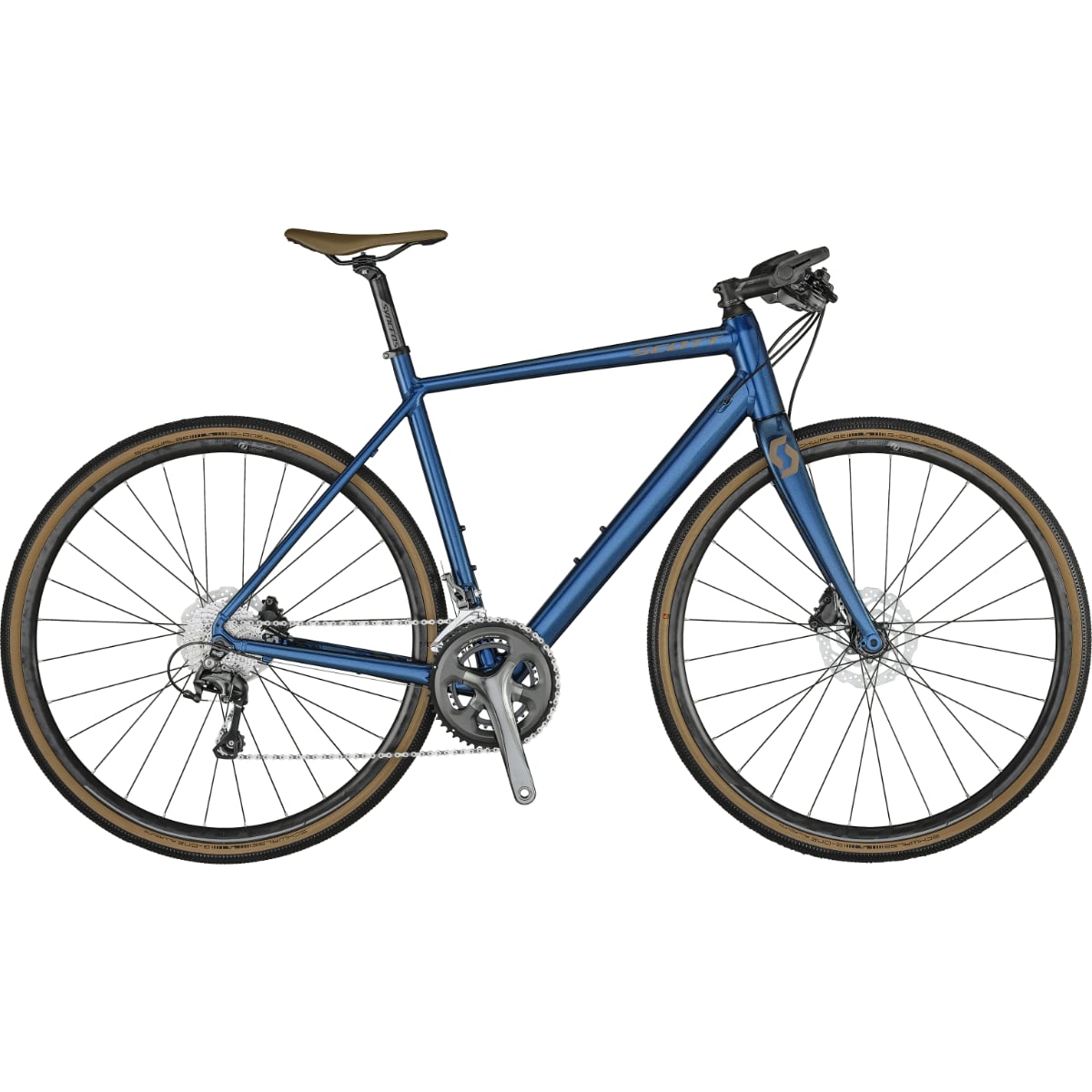

SCOTT METRIX 20 (2021)
Average rating: 0 reviews
SCOTT METRIX 20 (2021)
ناموجود
مشخصات فنی دوچرخه
| سایز تنه | S, M, L |
| تنه | Metrix Disc / 6061 D.Butted Alloy Endurance geometry / Integrated Headtube |
| کمک / دوشاخ | Metrix Disc Carbon 1 1/8 |
| کمک وسط | N/A |
| شانژمان جلو | Shimano Tiagra FD-4700 |
| شانژمان عقب | Shimano Tiagra RD-4700-GS 20 Speed |
| دسته دنده | Shimano SL-4700 |
| ترمز | Shimano BL-MT201, Shimano BR-UR300 Hyd.Disc, Shimano SM-RT10 CL rotor 160/F and 160/R |
| طبق قامه | Shimano Tiagra Compact FC-4700 Hyperdrive 50x34 T |
| توپ تنه | Shimano BB-RS500-PB |
| زنجیر | KMC X10 |
| توپی | Front: Formula Team II CL Disc 28 H / Rear: Formula Team II CL Disc 28 H |
| طوقه | Syncros Race 24 Disc 28 Front / 28 Rear |
| سیم پره | SHA-DAR Black 2mm |
| خودرو | Shimano CS-HG500 10 Speed 11-32 T |
| تایر | Schwalbe G-ONE 700x35C |
| کرپی فرمان | JD ST123A Alloy 1 1/8 |
| فرمان | Syncros Flat-Bar FL2.0 580mm |
| کاسه دوشاخ | Integrated Steel Cup |
| لوله زین | Syncros RR2.5 27.2/300mm |
| صندل | Syncros RR2.5 27.2/300mm |
Geometry
| XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle | 70.5 ° | 71.0 ° | 72.0 ° | 72.5 ° | 73.0 ° | 73.3 ° | 73.3 ° | |||||||||
| B | head tube length | 111.0 mm | 121.0 mm | 141.0 mm | 161.0 mm | 181.0 mm | 201.0 mm | 221.0 mm | |||||||||
| C | top tube horizontal | 505.0 mm | 515.0 mm | 530.0 mm | 545.0 mm | 560.0 mm | 575.0 mm | 590.0 mm | |||||||||
| D | standover height | 725.3 mm | 741.1 mm | 767.5 mm | 787.5 mm | 807.5 mm | 827.1 mm | 851.4 mm | |||||||||
| E | BB offset | -67.0 mm | -67.0 mm | -67.0 mm | -67.0 mm | -67.0 mm | -67.0 mm | -67.0 mm | |||||||||
| F | BB height | 282.0 mm | 282.0 mm | 282.0 mm | 282.0 mm | 282.0 mm | 282.0 mm | 282.0 mm | |||||||||
| G | wheel base | 973.1 mm | 979.4 mm | 981.2 mm | 986.8 mm | 991.6 mm | 999.0 mm | 1,012.7 mm | |||||||||
| H | BB center to toptube center | 410.0 mm | 430.0 mm | 460.0 mm | 480.0 mm | 500.0 mm | 520.0 mm | 550.0 mm | |||||||||
| I | BB center to top of seattube | 470.0 mm | 490.0 mm | 520.0 mm | 540.0 mm | 560.0 mm | 580.0 mm | 610.0 mm | |||||||||
| J | seat angle | 75.0 ° | 75.0 ° | 74.5 ° | 74.0 ° | 73.5 ° | 73.1 ° | 73.0 ° | |||||||||
| K | chainstay | 415.0 mm | 415.0 mm | 415.0 mm | 415.0 mm | 415.0 mm | 415.0 mm | 415.0 mm | |||||||||
| L | reach | 366.6 mm | 373.5 mm | 377.3 mm | 381.2 mm | 384.6 mm | 389.0 mm | 397.0 mm | |||||||||
| M | stack | 516.7 mm | 527.9 mm | 550.5 mm | 571.3 mm | 592.3 mm | 612.5 mm | 613.6 mm | |||||||||
| N | stem length | ||||||||||||||||
